Modern technologies in teaching FLT
PLAN:
INTRODUCTION……………………………………..……………….………..…2
PRINCIPLES OF ASR TECHNOLOGY………………..……………….………..3
PERFORMANCE AND DESIGN ISSUES IN SPEECH
APPLICATIONS……...7
CURRENT TRENDS IN VOICE-INTERACTIVE CALL………….…….………8
FUTURE TRENDS IN VOICE-INTERACTIVE CALL…….…..…………....…13
DEFINING AND ACQUIRING LITERACY IN THE AGE OF
INFORMATION…………………………………….………………………..…..14
CONTENT-BASED INSTRUCTION AND LITERACY DEVELOPMENT…..15
THEORY INTO PRACTICE…………….……………………………………….17
CONCLUSION………………………………………………………...…………17
REFERENCES……………………………………………………………………18
INTRODUCTION
During the past two decades, the
exercise of spoken language skills has received increasing attention among
educators. Foreign language curricula focus on productive skills with special
emphasis on communicative competence. Students' ability to engage in meaningful
conversational interaction in the target language is considered an important,
if not the most important, goal of second language education. This shift of
emphasis has generated a growing need for instructional materials that provide
an opportunity for controlled interactive speaking practice outside the
classroom.
With recent advances in multimedia
technology, computer-aided language learning (CALL) has emerged as a tempting
alternative to traditional modes of supplementing or replacing direct
student-teacher interaction, such as the language laboratory or
audio-tape-based self-study. The integration of sound, voice interaction, text,
video, and animation has made it possible to create self-paced interactive
learning environments that promise to enhance the classroom model of language
learning significantly. A growing number of textbook publishers now offer
educational software of some sort, and educators can choose among a large
variety of different products. Yet, the practical impact of CALL in the field
of foreign language education has been rather modest. Many educators are
reluctant to embrace a technology that still seeks acceptance by the language
teaching community as a whole (Kenning & Kenning, 1990).
A number of reasons have been cited for
the limited practical impact of computer-based language instruction. Among them
are the lack of a unified theoretical framework for designing and evaluating
CALL systems (Chapelle, 1997; Hubbard, 1988; Ng & Olivier, 1987); the
absence of conclusive empirical evidence for the pedagogical benefits of
computers in language learning (Chapelle, 1997; Dunkel, 1991; Salaberry, 1996);
and finally, the current limitations of the technology itself (Holland, 1995;
Warschauer, 1996). The rapid technological advances of the 1980s have raised
both the expectations and the demands placed on the computer as a potential
learning tool. Educators and second language acquisition (SLA) researchers
alike are now demanding intelligent, user-adaptive CALL systems that offer not
only sophisticated diagnostic tools, but also effective feedback mechanisms
capable of focusing the learner on areas that need remedial practice. As
Warschauer puts it, a computerized language teacher should be able to
understand a user's spoken input and evaluate it not just for correctness but
also for appropriateness. It should be able to diagnose a student's problems
with pronunciation, syntax, or usage, and then intelligently decide among a range
of options (e.g., repeating, paraphrasing, slowing down, correcting, or
directing the student to background explanations). (Warschauer, 1996, p. 6)
Salaberry (1996) demands nothing short
of a system capable of simulating the complex socio-communicative competence of
a live tutor--in other words, the linguistic intelligence of a human--only to
conclude that the attempt to create an "intelligent language tutoring
system is a fallacy" (p. 11). Because speech technology isn't perfect, it
is of no use at all. If it "cannot account for the full complexity of
human language," why even bother modeling more constrained aspects of
language use (Higgins, 1988, p. vii)? This sort of all-or-nothing reasoning
seems symptomatic of much of the latest pedagogical literature on CALL. The
quest for a theoretical grounding of CALL system design and evaluation
(Chapelle, 1997) tends to lead to exaggerated expectations as to what the
technology ought to accomplish. When combined with little or no knowledge of
the underlying technology, the inevitable result is disappointment.
PRINCIPLES OF
ASR TECHNOLOGY
Consider the following four scenarios:
1.
A
court reporter listens to the opening arguments of the defense and types the
words into a steno-machine attached to a word-processor.
2.
A
medical doctor activates a dictation device and speaks his or her patient's
name, date of birth, symptoms, and diagnosis into the computer. He or she then
pushes "end input" and "print" to produce a written record
of the patient's diagnosis.
3.
A mother
tells her three-year old, "Hey Jimmy, get me my slippers, will you?"
The toddler smiles, goes to the bedroom, and returns with papa's hiking boots.
4.
A
first-grader reads aloud a sentence displayed by an automated Reading Tutor.
When he or she stumbles over a difficult word, the system highlights the word,
and a voice reads the word aloud. The student repeats the sentence--this time
correctly--and the system responds by displaying the next sentence.
At some level, all four scenarios
involve speech recognition. An incoming speech signal elicits a response from a
"listener." In the first two instances, the response consists of a
written transcript of the spoken input, whereas in the latter two cases, an
action is performed in response to a spoken command. In all four cases, the
"success" of the voice interaction is relative to a given task as
embodied in a set of expectations that accompany the input. The interaction
succeeds when the response--by a machine or human "listener"--matches
these expectations.
Recognizing and understanding human
speech requires a considerable amount of linguistic knowledge: a command of the
phonological, lexical, semantic, grammatical, and pragmatic conventions that
constitute a language. The listener's command of the language must be
"up" to the recognition task or else the interaction fails. Jimmy
returns with the wrong items, because he cannot yet verbally discriminate
between different kinds of shoes. Likewise, the reading tutor would miserably
fail in performing the court-reporter's job or transcribing medical patient
information, just as the medical dictation device would be a poor choice for
diagnosing a student's reading errors. On the other hand, the human court
reporter--assuming he or she is an adult native speaker--would have no problem
performing any of the tasks mentioned under (1) through (4). The linguistic
competence of an adult native speaker covers a broad range of recognition tasks
and communicative activities. Computers, on the other hand, perform best when designed
to operate in clearly circumscribed linguistic sub-domains.
Since the early 1970s, a number of
different approaches to ASR have been proposed and implemented, including
Dynamic Time Warping, template matching, knowledge-based expert systems, neural
nets, and Hidden Markov Modeling (HMM) (Levinson & Liberman, 1981;
Weinstein, McCandless, Mondshein, & Zue, 1975; for a review, see Bernstein
& Franco, 1996). HMM-based modeling applies sophisticated statistical and
probabilistic computations to the problem of pattern matching at the sub-word
level. The generalized HMM-based approach to speech recognition has proven an
effective, if not the most effective, method for creating high-performance
speaker-independent recognition engines that can cope with large vocabularies;
the vast majority of today's commercial systems deploy this technique.
Therefore, we focus our technical discussion on an explanation of this
technique.
An HMM-based speech recognizer consists
of five basic components: (a) an acoustic signal analyzer which computes a
spectral representation of the incoming speech; (b) a set of phone models
(HMMs) trained on large amounts of actual speech data; (c) a lexicon for
converting sub-word phone sequences into words; (d) a statistical language
model or grammar network that defines the recognition task in terms of
legitimate word combinations at the sentence level; (e) a decoder, which is a
search algorithm for computing the best match between a spoken utterance and
its corresponding word string. Figure 1
shows a schematic representation of the components of a speech recognizer and
their functional interaction.

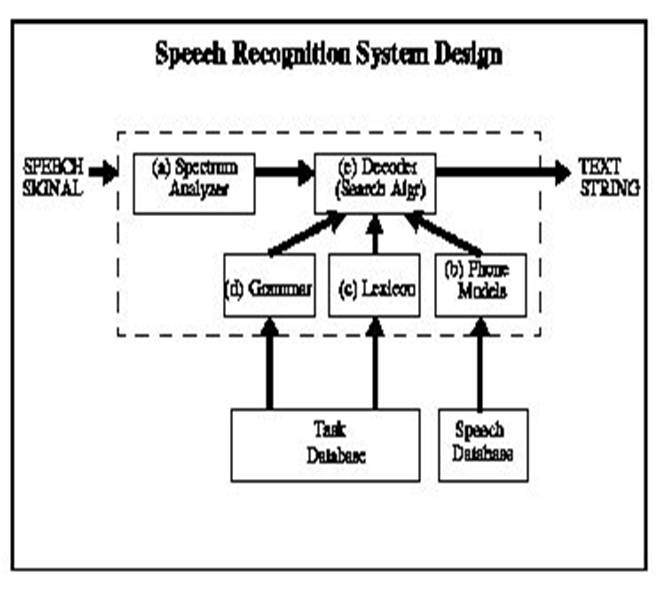

Figure 1. Components of a speech
recognition device
A. Signal Analysis
The first step in automatic speech
recognition consists of analyzing the incoming speech signal. When a person
speaks into an ASR device--usually through a high quality noise-canceling
microphone--the computer samples the analog input into a series of 16- or 8-bit
values at a particular sampling frequency (ranging from 8 to 22KHz). These
values are grouped together in predetermined overlapping temporal intervals
called "frames." These numbers provide a precise description of the
speech signal's amplitude. In a second step, a number of acoustically relevant
parameters such as energy, spectral features, and pitch information, are
extracted from the speech signal (for a visual representation of some of these
parameters, see Figure 2 on
page 53). During training, this information is used to model that particular
portion of the speech signal. During recognition, this information is matched
against the pre-existing model of the signal.
B. Phone Models
Training a machine to recognize spoken
language amounts to modeling the basic sounds of speech (phones). Automatic
speech recognition strings together these models to form words. Recognizing an
incoming speech signal involves matching the observed acoustic sequence with a
set of HMM models. An HMM can model either phones or other sub-word units or it
can model words or even whole sentences. Phones are either modeled as
individual sounds--so-called monophones--or as phone combinations that model
several phones and the transitions between them (biphones or triphones). After
comparing the incoming acoustic signal with the HMMs representing the sounds of
language, the system computes a hypothesis based on the sequence of models that
most closely resembles the incoming signal. The HMM model for each linguistic
unit (phone or word) contains a probabilistic representation of all the
possible pronunciations for that unit--just as the model of the handwritten
cursive b would have many different representations. Building HMMs--a
process called training--requires a large amount of speech data of the type the
system is expected to recognize. Large-vocabulary speaker-independent
continuous dictation systems are typically trained on tens of thousands of read
utterances by a cross-section of the population, including members of different
dialect regions and age-groups. As a general rule, an automatic speech
recognizer cannot correctly process speech that differs in kind from the speech
it has been trained on. This is why most commercial dictation systems, when
trained on standard American English, perform poorly when encountering accented
speech, whether by non-native speakers or by speakers of different dialects. We
will return to this point in our discussion of voice-interactive CALL
applications.
C. Lexicon
The lexicon, or dictionary, contains the
phonetic spelling for all the words that are expected to be observed by the
recognizer. It serves as a reference for converting the phone sequence
determined by the search algorithm into a word. It must be carefully designed
to cover the entire lexical domain in which the system is expected to perform.
If the recognizer encounters a word it does not "know" (i.e., a word
not defined in the lexicon), it will either choose the closest match or return
an out-of-vocabulary recognition error. Whether a recognition error is
registered as a misrecognition or an out-of-vocabulary error depends in part on
the vocabulary size. If, for example, the vocabulary is too small for an
unrestricted dictation task--let's say less than 3K--the out-of-vocabulary
errors are likely to be very high. If the vocabulary is too large, the chance
of misrecognition errors increases because with more similar-sounding words,
the confusability increases. The vocabulary size in most commercial dictation
systems tends to vary between 5K and 60K.
D. The Language Model
The language model predicts the most
likely continuation of an utterance on the basis of statistical information
about the frequency in which word sequences occur on average in the language to
be recognized. For example, the word sequence A bare attacked him will
have a very low probability in any language model based on standard English
usage, whereas the sequence A bear attacked him will have a higher
probability of occurring. Thus the language model helps constrain the
recognition hypothesis produced on the basis of the acoustic decoding just as
the context helps decipher an unintelligible word in a handwritten note. Like
the HMMs, an efficient language model must be trained on large amounts of data,
in this case texts collected from the target domain.
In ASR applications with constrained
lexical domain and/or simple task definition, the language model consists of a
grammatical network that defines the possible word sequences to be accepted by
the system without providing any statistical information. This type of design
is suitable for CALL applications in which the possible word combinations and
phrases are known in advance and can be easily anticipated (e.g., based on user
data collected with a system pre-prototype). Because of the a priori constraining
function of a grammar network, applications with clearly defined task grammars
tend to perform at much higher accuracy rates than the quality of the acoustic
recognition would suggest.
E. Decoder
Simply put, the decoder is an algorithm
that tries to find the utterance that maximizes the probability that a given
sequence of speech sounds corresponds to that utterance. This is a search
problem, and especially in large vocabulary systems careful consideration must
be given to questions of efficiency and optimization, for example to whether
the decoder should pursue only the most likely hypothesis or a number of them
in parallel (Young, 1996). An exhaustive search of all possible completions of
an utterance might ultimately be more accurate but of questionable value if one
has to wait two days to get a result. Trade-offs are therefore necessary to
maximize the search results while at the same time minimizing the amount of CPU
and recognition time.
PERFORMANCE AND DESIGN ISSUES IN SPEECH
APPLICATIONS
For educators and developers interested
in deploying ASR in CALL applications, perhaps the most important consideration
is recognition performance: How good is the technology? Is it ready to be
deployed in language learning? These questions cannot be answered except with
reference to particular applications of the technology, and therefore touch on
a key issue in ASR development: the issue of human-machine interface design.
As we recall, speech recognition
performance is always domain specific--a machine can only do what it is
programmed to do, and a recognizer with models trained to recognize business
news dictation under laboratory conditions will be unable to handle spontaneous
conversational speech transmitted over noisy telephone channels. The question
that needs to be answered is therefore not simply "How good is ASR
technology?" but rather, "What do we want to use it for?" and
"How do we get it to perform the task?"
In the following section, we will
address the issue of system performance as it relates to a number of successful
commercial speech applications. By emphasizing the distinction between
recognizer performance on the one hand--understood in terms of "raw"
recognition accuracy--and system performance on the other; we suggest how the
latter can be optimized within an overall design that takes into account not
only the factors that affect recognizer performance as such, but also, and
perhaps even more importantly, considerations of human-machine interface
design.
Historically, basic speech recognition
research has focused almost exclusively on optimizing large vocabulary
speaker-independent recognition of continuous dictation. A major impetus for
this research has come from US government sponsored competitions held annually
by the Defense Advanced Research Projects Agency (DARPA). The main emphasis of
these competitions has been on improving the "raw" recognition
accuracy--calculated in terms of average omissions, insertions, and
substitutions--of large-vocabulary continuous speech recognizers (LVCSRs) in
the task of recognizing read sentence material from a number of standard
sources (e.g., The Wall Street Journal or The New York Times).
The best laboratory systems that participated in the WSJ large-vocabulary continuous
dictation task have achieved word error rates as low as 5%, that is, on
average, one recognition error in every twenty words (Pallet, 1994).
CURRENT TRENDS IN VOICE-INTERACTIVE CALL
In recent years, an increasing number of
speech laboratories have begun deploying speech technology in CALL
applications. Results include voice-interactive prototype systems for teaching
pronunciation, reading, and limited conversational skills in semi-constrained
contexts. Our review of these applications is far from exhaustive. It covers a
select number of mostly experimental systems that explore paths we found
promising and worth pursuing. We will discuss the range of voice-interactions
these systems offer for practicing certain language skills, explain their
technical implementation, and comment on the pedagogical value of these
implementations. Apart from giving a brief system overview, we report
experimental results if available and provide an assessment of how far away the
technology is from being deployed in the commercial and educational
environments.
Pronunciation Training
A useful and remarkably successful
application of speech recognition and processing technology has been
demonstrated by a number of research and commercial laboratories in the area of
pronunciation training. Voice-interactive pronunciation tutors prompt students
to repeat spoken words and phrases or to read aloud sentences in the target
language for the purpose of practicing both the sounds and the intonation of
the language. The key to teaching pronunciation successfully is corrective
feedback, more specifically, a type of feedback that does not rely on the
student's own perception. A number of experimental systems have implemented
automatic pronunciation scoring as a means to evaluate spoken learner
productions in terms of fluency, segmental quality (phonemes) and
supra-segmental features (intonation). The automatically generated proficiency
score can then be used as a basis for providing other modes of corrective
feedback. We discuss segmental and supra-segmental feedback in more detail
below.
Segmental Feedback.
Technically, designing a voice-interactive pronunciation tutor goes beyond the
state of the art required by commercial dictation systems. While the grammar
and vocabulary of a pronunciation tutor is comparatively simple, the underlying
speech processing technology tends to be complex since it must be customized to
recognize and evaluate the disfluent speech of language learners. A
conventional speech recognizer is designed to generate the most charitable
reading of a speaker's utterance. Acoustic models are generalized so as to
accept and recognize correctly a wide range of different accents and
pronunciations. A pronunciation tutor, by contrast, must be trained to both
recognize and correct subtle deviations from standard native pronunciations.
A number of techniques have been
suggested for automatic recognition and scoring of non-native speech
(Bernstein, 1997; Franco, Neumeyer, Kim, & Ronen, 1997; Kim, Franco, &
Neumeyer, 1997; Witt & Young, 1997). In general terms, the procedure
consists of building native pronunciation models and then measuring the
non-native responses against the native models. This requires models trained on
both native and non-native speech data in the target language, and supplemented
by a set of algorithms for measuring acoustic variables that have proven useful
in distinguishing native from non-native speech. These variables include
response latency, segment duration, inter-word pauses (in phrases), spectral
likelihood, and fundamental frequency (F0). Machine scores are calculated from
statistics derived from comparing non-native values for these variables to the
native models.
In a final step, machine generated
pronunciation scores are validated by correlating these scores with the
judgment of human expert listeners. As one would expect, the accuracy of scores
increases with the duration of the utterance to be evaluated. Stanford Research
Institute (SRI) has demonstrated a 0.44 correlation between machine scores and
human scores at the phone level. At the sentence level, the machine-human
correlation was 0.58, and at the speaker level it was 0.72 for a total of 50
utterances per speaker (Franco et al., 1997; Kim et al., 1997). These results
compare with 0.55, 0.65, and 0.80 for phone, utterance, and speaker level
correlation between human graders. A study conducted at Entropic shows that
based on about 20 to 30 utterances per speaker and on a linear combination of
the above techniques, it is possible to obtain machine-human grader correlation
levels as high as 0.85 (Bernstein, 1997).
Others have used expert knowledge about
systematic pronunciation errors made by L2 adult learners in order to diagnose
and correct such errors. One such system is the European Community project
SPELL for automated assessment and improvement of foreign language
pronunciation (Hiller, Rooney, Vaughan, Eckert, Laver, & Jack, 1994). This
system uses advanced speech processing and recognition technologies to assess
pronunciation errors by L2 learners of English (French or Italian speakers) and
provide immediate corrective feedback. One technique for detecting consonant
errors induced by inter-language transfer was to include students' L1
pronunciations into the grammar network. In addition to the English /th/ sound,
for example, the grammar network also includes /t/ or /s/, that is, errors
typical of non-native Italian speakers of English. This system, although quite
simple in the use of ASR technology, can be very effective in diagnosing and
correcting known problems of L1 interference. However, it is less effective in
detecting rare and more idiosyncratic pronunciation errors. Furthermore, it
assumes that the phonetic system of the target language (e.g., English) can be
accurately mapped to the learners' native language (e.g., Italian). While this
assumption may work well for an Italian learner of English, it certainly does
not for a Chinese learner; that is, there are sounds in Chinese that do not
resemble any sounds in English.
Supra-segmental Feedback.
Correct usage of supra-segmental features such as intonation and stress has
been shown to improve the syntactic and semantic intelligibility of spoken
language (Crystal, 1981). In spoken conversation, intonation and stress
information not only helps listeners to locate phrase boundaries and word
emphasis, but also to identify the pragmatic thrust of the utterance (e.g.,
interrogative vs. declarative). One of the main acoustical correlates of stress
and intonation is fundamental frequency (F0); other acoustical characteristics
include loudness, duration, and tempo. Most commercial signal processing
software have tools for tracking and visually displaying F0 contours (see Figure 2).
Such displays can and have been used to provide valuable pronunciation feedback
to students. Experiments have shown that a visual F0 display of supra-segmental
features combined with audio feedback is more effective than audio feedback
alone (de Bot, 1983; James, 1976), especially if the student's F0 contour is
displayed along with a native model. The feasibility of this type of visual
feedback has been demonstrated by a number of simple prototypes (Abberton &
Fourcin, 1975; Anderson-Hsieh, 1994; Hiller et al., 1994; Spaai & Hermes,
1993; Stibbard, 1996). We believe that this technology has a good potential for
being incorporated into commercial CALL systems.
Other types of visual pronunciation
feedback include the graphical display of a native speaker's face, the vocal
tract, spectrum information, and speech waveforms (see Figure 2).
Experiments have shown that a visual display of the talker improves not only
word identification accuracy (Bernstein & Christian, 1996), but also speech
rhythm and timing (Markham & Nagano-Madesen, 1997). A large number of
commercial pronunciation tutors on the market today offer this kind of
feedback. Yet others have experimented with using a real-time spectrogram or
waveform display of speech to provide pronunciation feedback. Molholt (1990)
and Manuel (1990) report anecdotal success in using such displays along with
guidance on how to interpret the displays to improve the pronunciation of
suprasegmental features in L2 learners of English. However, the authors do not
provide experimental evidence for the effectiveness of this type of visual
feedback. Our own experience with real-time spectrum and waveform displays
suggests their potential use as pronunciation feedback provided they are
presented along with other types of feedback, as well as with instructions on
how to interpret the displays.
Teaching Linguistic Structures and Limited
Conversation
Apart from supporting systems for
teaching basic pronunciation and literacy skills, ASR technology is being
deployed in automated language tutors that offer practice in a variety of
higher-level linguistic skills ranging from highly constrained grammar and
vocabulary drills to limited conversational skills in simulated real-life
situations. Prior to implementing any such system, a choice needs to be made
between two fundamentally different system design types: closed response
vs. open response design. In both designs, students are prompted for
speech input by a combination of written, spoken, or graphical stimuli.
However, the designs differ significantly with reference to the type of verbal
computer-student interaction they support. In closed response systems, students
must choose one response from a limited number of possible responses presented
on the screen. Students know exactly what they are allowed to say in response
to any given prompt. By contrast, in systems with open response design, the
network remains hidden and the student is challenged to generate the
appropriate response without any cues from the system.
Closed Response Designs.
One of the first implementations of a closed response design was the Voice
Interactive Language Instruction System (VILIS) developed at SRI (Bernstein
& Rtischev, 1991). This system elicits spoken student responses by
presenting queries about graphical displays of maps and charts. Students infer
the right answers to a set of multiple-choice questions and produce spoken
responses.
A more recent prototype currently under
development in SRI is the Voice Interactive Language Training System (VILTS), a
system designed to foster speaking and listening skills for beginning through
advanced L2 learners of French (Egan, 1996; Neumeyer et al., 1996; Rypa, 1996).
The system incorporates authentic, unscripted conversational materials
collected from French speakers into an engaging, flexible, and user-centered
lesson architecture. The system deploys speech recognition to guide students
through the lessons and automatic pronunciation scoring to provide feedback on
the fluency of student responses. As far as we know, only the pronunciation
scoring aspect of the system has been validated in experimental trials
(Neumeyer et al., 1996).
In pedagogically more sophisticated
systems, the query-response mode is highly contextualized and presented as part
of a simulated conversation with a virtual interlocutor. To stimulate student
interest, closed response queries are often presented in the form of games or
goal-driven tasks. One commercial system that exploits the full potential of
this design is TraciTalk (Courseware Publishing International, Inc., Cupertino,
CA), a voice-driven multimedia CALL system aimed at more advanced ESL learners.
In a series of loosely connected scenarios, the system engages students in
solving a mystery. Prior to each scenario, students are given a task (e.g.,
eliciting a certain type of information), and they accomplish this task by
verbally interacting with characters on the screen. Each voice interaction
offers several possible responses, and each spoken response moves the
conversation in a slightly different direction. There are many paths through
each scenario, and not every path yields the desired information. This
motivates students to return to the beginning of the scene and try out a
different interrogation strategy. Moreover, TraciTalk features an agent that
students can ask for assistance and accepts spoken commands for navigating the
system. Apart from being more fun and interesting, games and task-oriented
programs implicitly provide positive feedback by giving students the feeling of
having solved a problem solely by communicating in the target language.
The speech recognition technology
underlying closed response query implementations is very simple, even in the
more sophisticated systems. For any given interaction, the task perplexity is
low and the vocabulary size is comparatively small. As a result, these systems
tend to be very robust. Recognition accuracy rates in the low to upper 90%
range can be expected depending on task definition, vocabulary size, and the
degree of non-native disfluency.
FUTURE TRENDS IN VOICE-INTERACTIVE CALL
In the previous sections, we reviewed
the current state of speech technology, discussed some of the factors affecting
recognition performance, and introduced a number of research prototypes that
illustrate the range of speech-enabled CALL applications that are currently
technically and pedagogically feasible. With the exception of a few exploratory
open response dialog systems, most of these systems are designed to teach and
evaluate linguistic form (pronunciation, fluency, vocabulary study, or
grammatical structure). This is no coincidence. Formal features can be clearly
identified and integrated into a focused task design. This means that robust
performance can be expected. Furthermore, mastering linguistic form remains an
important component of L2 instruction, despite the emphasis on communication
(Holland, 1995). Prolonged, focused practice of a large number of items is
still considered an effective means of expanding and reinforcing linguistic
competence (Waters, 1994). However, such practice is time consuming. CALL can
automate these aspects of language training, thereby freeing up valuable class
time that would otherwise be spent on drills.
While such systems are an important step
in the right direction, other more complex and ambitious applications are
conceivable and no doubt desirable. Imagine a student being able to access the
Internet, find the language of his or her choice, and tap into a comprehensive
voice-interactive multimedia language program that would provide the equivalent
of an entire first year of college instruction. The computer would evaluate the
student's proficiency level and design a course of study tailored to his or her
needs. Or think of using the same Internet resources and a set of high-level
authoring tools to put together a series of virtual encounters surrounding the
task of finding an apartment in Berlin. As a minimum, one would hope that
natural speech input capacity becomes a routine feature of any CALL
application.
To many educators, these may still seem
like distant goals, and yet we believe that they are not beyond reach. In what
follows, we identify four of the most persistent issues in building
speech-enabled language learning applications and suggest how they might be
resolved to enable a more widespread commercial implementation of speech technology
in CALL.
1. More research is necessary on modeling
and predicting multi-turn dialogs.
An intelligent open response language
tutor must not only correctly recognize a given speech input, but in
addition understand what has been said and evaluate the meaning
of the utterance for pragmatic appropriateness. Automatic speech understanding
requires Natural Language Processing (NLP) capabilities, a technology for
extracting grammatical, semantic, and pragmatic information from written or
spoken discourse. NLP has been successfully deployed in expert systems and
information retrieval. One of the first voice-interactive dialog systems using
NLP was the DARPA-sponsored Air Travel Information System (Pallett, 1995),
which enables the user to obtain flight information and make ticket
reservations over the telephone. Similar commercial systems have been
implemented for automatic retrieval of weather and restaurant information,
virtual environments, and telephone auto-attendants. Many of the lessons
learned in developing such systems can be valuable for designing CALL
applications for practicing conversational skills.
2. More and better training data are needed
to support basic research on modeling non-native conversational speech.
One of the most needed resources for
developing open response conversational CALL applications is large corpora of
non-native transcribed speech data, of both read and conversational speech.
Since accents vary depending on the student's first language, separate
databases must either be collected for each L1 subgroup, or a representative
sample of speakers of different languages must be included in the database.
Creating such databases is extremely labor and cost intensive--a phone level
transcription of spontaneous conversational data can cost up to one dollar per
phone. A number of multilingual conversational databases of telephone speech
are publicly available through the Linguistic Data Consortium (LDC), including
Switchboard (US English) and CALLHOME (English, Japanese, Spanish, Chinese,
Arabic, German). Our own effort in collaboration with John Hopkins University
(Byrne, Knodt, Khudanpur, & Bernstein, 1998; Knodt, Bernstein, &
Todic,1998) has been to collect and model spontaneous English conversations
between Hispanic natives. All of these efforts will improve our understanding
of the disfluent speech of language learners and help model this speech type
for the purpose of human-machine communication.
DEFINING AND ACQUIRING
LITERACY IN THE AGE OF INFORMATION
Moll defined literacy as "a
particular way of using language for a variety of purposes, as a sociocultural
practice with intellectual significance" (1994, p. 201). While traditional
definitions of literacy have focused on reading and writing, the definition of
literacy today is more complex. The process of becoming literate today involves
more than learning how to use language effectively; rather, the process
amplifies and changes both the cognitive and the linguistic functioning of the
individual in society. One who is literate knows how to gather, analyze, and
use information resources to solve problems and make decisions, as well as how
to learn both independently and cooperatively. Ultimately literate individuals
possess a range of skills that enable them to participate fully in all aspects
of modern society, from the workforce to the family to the academic community.
Indeed, the development of literacy is "a dynamic and ongoing process of
perpetual transformation" (Neilsen, 1989, p. 5), whose evolution is
influenced by a person's interests, cultures, and experiences. Researchers have
viewed literacy as a multifaceted concept for a number of years (Johns, 1997).
However, succeeding in a digital, information-oriented society demands
multiliteracies, that is, competence in an even more diverse set of functional,
academic, critical, and electronic skills.
To be considered multiliterate, students
today must acquire a battery of skills that will enable them to take advantage
of the diverse modes of communication made possible by new technologies and to
participate in global learning communities. Although becoming multiliterate is
not an easy task for any student, it is especially difficult for ESL students
operating in a second language. In their attempts to become multiliterate, ESL
students must acquire linguistic competence in a new language and at the same
time develop the cognitive and sociocultural skills necessary to gain access
into the social, academic, and workforce environments of the 21st
century. They must become functionally literate, able to speak, understand,
read, and write English, as well as use English to acquire, articulate and
expand their knowledge. They must also become academically literate, able to
read and understand interdisciplinary texts, analyze and respond to those texts
through various modes of written and oral discourse, and expand their knowledge
through sustained and focused research. Further, they must become critically
literate, defined here as the ability to evaluate the validity and reliability
of informational sources so that they may draw appropriate conclusions from
their research efforts. Finally, in our digital age of information, students
must become electronically literate, able "to select and use electronic
tools for communication, construction, research, and autonomous learning"
(Shetzer, 1998).
Helping students develop the range of
literacies they need to enter and succeed at various levels of the academic
hierarchy and subsequently in the workforce requires a pedagogy that facilitates
and hastens linguistic proficiency development, familiarizes students with the
requirements and conventions of academic discourse, and supports the use of
critical thinking and higher order cognitive processes. A large body of
research conducted over the past decade (see, e.g., Benesch, 1988; Brinton,
Snow, & Wesche, 1989; Crandall, 1993; Kasper, 1997a, 2000a; Pally, 2000;
Snow & Brinton, 1997) has shown that content-based instruction (CBI) is
highly effective in helping ESL students develop the literacies they need to be
successful in academic and workforce environments.
CONTENT-BASED
INSTRUCTION AND LITERACY DEVELOPMENT
CBI develops linguistic competence and
functional literacy by exposing ESL learners to interdisciplinary input that
consists of both "everyday" communicative and academic language
(Cummins, 1981; Mohan, 1990; Spanos, 1989) and that contains a wide range of
vocabulary, forms, registers, and pragmatic functions (Snow, Met, &
Genesee, 1989; Zuengler & Brinton, 1997). Because content-based pedagogy
encourages students to use English to gather, synthesize, evaluate, and
articulate interdisciplinary information and knowledge (Pally, 1997), it also
allows them to hone academic and critical literacy skills as they practice
appropriate patterns of academic discourse (Kasper, 2000b) and become familiar
with sociolinguistic conventions relating to audience and purpose (Soter,
1990).
In a 1996 paper published in The
Harvard Educational Review, The New London Group (NLG) advocated developing
multiliteracies through a pedagogy that involves a complex interaction of four
factors which they called Situated Practice, Overt Instruction, Critical
Framing, and Transformed Practice. According to the NLG, becoming
multiliterate requires critical engagement in relevant tasks, interaction with
diverse forms of communication made possible by electronic technologies, and
participation in collaborative learning contexts. Warschauer (1999) concurred
and stated that a pedagogy of critical inquiry and problem solving that
provides the context for "authentic and collaborative projects and
analyses" (p. 16) that support and are supported by the use of electronic
technologies is necessary for ESL students to acquire the linguistic, social,
and technological competencies key to literacy in a digital world.
According to a 1995 report published by
the United States Department of Education, "technology is an important
enabler for classes organized around complex, authentic tasks" and when
"used in support of challenging projects, [technology] can contribute to
students' sense ... that they are using real tools for real purposes."
Technology use increases students' motivation as it promotes their active
engagement with language and content through authentic, challenging tasks that
are interdisciplinary in nature (McGrath, 1998). Technology use also encourages
students to spend more time on task. As they search for information in a
hyperlinked environment, ESL students benefit from increased opportunities to process
linguistic and content information. Used as a tool for learning, technology
supports a level of task authenticity and complexity that fits well with the
interdisciplinary work inherent in content-based instruction and that promotes
the acquisition of multiliteracies.
THEORY INTO PRACTICE
These research findings suggest that in
our efforts to prepare ESL students for the challenges of the academic and
workforce environments of the 21st century, we should adopt a
pedagogical model that incorporates information technology as an integral
component and that specifically targets the development of the range of
literacies deemed necessary for success in a digital, information-oriented
society. This paper describes a content-based pedagogy, which I call focus
discipline research (Kasper, 1998a), and presents the results of a
classroom study conducted to measure the effects of focus discipline research
on the development of ESL students' literacy skills.
As described here, focus discipline
research puts theory into practice as it incorporates the principles of
cognitive learning theory, SLA research, and the four components of the NLG's
(1996) pedagogy of multiliteracies. Through pedagogical activities that provide
the context for situated practice, overt instruction, critical framing, and
transformed practice, focus discipline research promotes ESL students' choice
of and responsibility for course content, engages them in extended practice
with linguistic structures and interdisciplinary material, and encourages them
to become "content experts" in a subject of their own choosing.
CONCLUSION
It can be seen that it is difficult and
probably undesirable to attempt to determine the difficulty of a listening and
viewing task in any absolute terms. By considering the three aspects that
affect the level of difficulty, namely text, task, and context features, it is
possible to identify those characteristics of tasks that can be manipulated.
Having identified the variable characteristics of tasks in developing the
model, it is necessary to look to the dynamic interaction among, tasks, texts,
and the computer-based environment.
Task design and text selection in this
model also incorporate the identification and consideration of context.
Teachers can make provision for their influence on learner perception of
difficulty by providing texts and tasks that range across these levels, and by
ensuring that learners with lower language proficiency can ease themselves
gradually into the more contextually difficult tasks. This can be achieved by
reducing the level of difficulty of other parameters such as text or task
difficulty, or by minimizing other aspects of contextual difficulty. Thus, for
example, learners of lower proficiency who are exposed for the first time to a
task based on a broadcast announcement would be provided with appropriate
visual support in the form of graphics or video to reduce textual difficulty.
The task type would also be kept to a low level of cognitive demand (Hoven,
1991, 1997a, 1997b).
In a CELL environment, this
identification of parameters of difficulty enables task designers to develop
and modify tasks on the basis of clear language pedagogy that is both
learner-centred and cognitively sound. Learners are provided with the necessary
information on text, task, and context to make informed choices, and are given
opportunities to implement their decisions. Teachers are therefore creating a
CELL environment that facilitates and encourages exploration of, and
experimentation with, the choices available. Within this model, learners are
then able to adjust their own learning paths through the texts and tasks, and
can do this at their own pace and at their individual points of readiness. In
sociocultural terms, the model provides learners with a guiding framework or
community of practice within which to develop through their individual Zones of
Proximal Development. The model provides them with the tools to mediate meaning
in the form of software incorporating information, feedback, and appropriate
help systems.
By taking account of learners' needs and
making provision for learner choice in this way, one of the major advantages of
using computers in language learning--their capacity to allow learners to work
at their own pace and in their own time--can be more fully exploited. It then
becomes our task as researchers to evaluate, with learners' assistance, the
effectiveness of environments such as these in improving the their listening
and viewing comprehension as well as their approaches to learning in these
environments.
REFERENCES
1.
Adair-Hauck, B., & Donato, R.
(1994). Foreign language explanations within the zone of proximal development. The
Canadian Modern Language Review 50(3), 532-557.
2.
Anderson, A., & Lynch, T. (1988). Listening.
Oxford: Oxford University Press.
3.
Armstrong, D. F., Stokoe, W. C., &
Wilcox, S. E. (1995). Gesture and the nature of language. Cambridge:
University of Cambridge.
4.
Arndt, H., & Janney, R. W. (1987). InterGrammar:
Toward an integrative model of verbal, prosodic and kinesic choices in speech.
Berlin: Mouton de Gruyter.
5.
Asher, J. J. (1981). Comprehension training:
The evidence from laboratory and classroom studies. In H. Winitz (Ed.), The
Comprehension Approach to Foreign Language Instruction (pp. 187-222).
Rowley, MA: Newbury House.
6.
Bacon, S. M. (1992a). Authentic
listening in Spanish: How learners adjust their strategies to the difficulty of
input. Hispania 75, 29-43.
8.
Batley, E. M., & Freudenstein, R.
(Eds.). (1991). CALL for the Nineties: Computer Technology in Language
Learning. Marburg, Germany: FIPLV/EUROCENTRES.
9.
Ellis, R. (1985). Understanding
second language acquisition. Oxford: Oxford University Press.
10.
Faerch,
C., & Kasper, G. (1986). The role of comprehension in second language
learning. Applied Linguistics 7(3), 257-274.
11.
Felder,
R. M., & Henriques, E. R. (1995). Learning and teaching styles in foreign
language education. Foreign Language Annals 28, 21-31.
12.
Felix,
U. (1995). Theater Interaktiv: multimedia integration of language and
literature. On-CALL 9, 12-16.
13.
Fidelman,
C. (1994). In the French Body/In the German Body: Project results. Demonstrated
at the CALICO '94 Annual Symposium "Human Factors." Northern Arizona
University, Flagstaff, AZ.
14.
Fidelman,
C. G. (1997). Extending the language curriculum with enabling technologies:
Nonverbal communication and interactive video. In K. A. Murphy-Judy (Ed.),
NEXUS: The convergence of language teaching and reseearch using technology, pp.
28-41. Durham, NC: CALICO.
15.
Fish,
H. (1981). Graded activities and authentic materials for listening
comprehension. In The teaching of listening comprehension. ELT Documents
Special: Papers presented at the Goethe Institut Colloquium Paris 1979, pp.
107-115. London: British Council.
16.
Garrigues,
M. (1991). Teaching and learning languages with interactive videodisc. In M. D.
Bush, A. Slaton, M. Verano, & M. E. Slayden (Eds.), Interactive videodisc:
The "Why" and the "How." (CALICO Monograph Series, Vol. 2,
Spring, pp. 37-43.) Provo, UT: Brigham Young Press.
17.
Gassin,
J. (1992). Interkinesics and Interprosodics in Second Language Acquisition.
Australian Review of Applied Linguistics 15(1), 95-106.
18.
Hoven,
D. (1997a). Instructional design for multimedia: Towards a learner-centred CELL
(Computer-Enhanced Language Learning) model. In K. A. Murphy-Judy (Ed.), NEXUS:
The convergence of language teaching and research using technology, pp. 98-111.
Durham, NC: CALICO.
19.
Hoven,
D. (1997b). Improving the management of flow of control in computer-assisted
listening comprehension tasks for second and foreign language learners.
Unpublished doctoral dissertation, University of Queensland, Brisbane,
Australia. Retrieved July 25, 1999 from the World Wide Web: http://jcs120.jcs.uq.edu.au/~dlh/thesis/.
20.
Richards,
J. C. (1983). Listening comprehension: Approach, design,
procedure. TESOL Quarterly 17(2), 219-240.
