Radio Frequency Identification Technology
Ministry
of Education and Science of the Russian FederationEducational Institution of
Higher Professional TrainingResearch Tomsk Polytechnic University
TECHNOLOGY
2014
Abbreviation words
- Radio Frequency Identification- Read Only- Write Once Read
Many- Read and Write- International Organization for Standardization
Introduction
1. Radio Frequency
Identification
1.1 Types of RFID - tag
1.2 The overall architecture
of RFID-systems
1.3 Reader
1.4 RFID standards
1.5 RFID Security Threats
2. Software
3. Application
Conclusion
References
Introduction
report begins with a review of the literature on use GPS
(Global Positioning System) technology. The engineering physics literature
suggests development and application of RFID (Radio Frequency Identification)
technologies.purpose of the report is to determine the most effective scope of
RFID technology for printing companies in Russia, as well as indicate the
prospects for their further development.work is divided into three parts. In
the first part, it is said about Radio Frequency Identification System. In the
second part, it is said about advantage of software for RFID. In
the third part, it is said about application RFID - system.this project, in
an attempt to explain a wide range of applications the RFID technologies county
archives were consulted. These proved a valuable resource.extensive body of
literature exists on the RFID technology that is used to describe a system that
transmits the identity of an object or person in the form of a unique serial
number, using radio waves. The present study draws primarily on the works of
Samet Akpinar and Hakan Kaptan.
1.
Radio Frequency Identification
term "Radio Frequency Identification" is a method
of identifying a physical object, in compliance with which is supplied RFID tag
(tag, smart-label) microprocessor unit for receiving, storing and transmitting
identification data with the radio interface. The radio frequency
identification (RFID), infrared sensors, global positioning systems, laser
scanners and other information sensing device, according to the agreed
protocol, to any article connected to the Internet up to information exchange
and communication, in order to achieve intelligent identify, locate, track,
monitor and manage a network. Internet of Things concept is put forward in
1999. Internet of Things is the "material objects connected to the
Internet". This has two meanings: first, the core of networking and
infrastructure continues to be the Internet, is in the Internet on the basis of
the extension and expansion of the network; second, the user-end extended and
expanded to any article and articles, information exchange and communication. RFID
is a technology with important business value and huge potential. RFID promises
to replace the old barcode and contributes to the real time visibility of the
goods, regardless of the location of the supply chain. We find RFID
applications in various fields, but its main use is in tracking objects (C.
Sun, 2012, p.1).
1.1 Types
of RFID - tag
its simplest form, RFID is a concept similar to barcode
technology, but without requiring a direct visibility of the monitored
entities. Just like bar code systems require a proper optical reader and
special tags applied on products, RFID needs a reader equipment and special
tags or cards attached to the products in order for the products to be tracked
(C. Sun, 2012, p. 2)power supply:transponders have their own power source, so
that they can transmit data at a fairly long distance. Active transponders are
used, among other things, the electronic customs information
systems.transponders have no own power source and receive energy from the
electromagnetic field of the reader. Passive transponders are used, for
example, code cards in warehouse logistics.passive RFID-tags, also called
semi-active, very similar to passive tags, but are equipped with a battery that
provides chip Power On. Thus the range of these markers depends on the
sensitivity of the receiver of the reader, they can function at greater
distances and with better performance.types of memory:
"RO" (Read Only) data is written only once, just in
manufacturing. Such tags are useful for identification only. Any new
information in them can not be recorded, and it is virtually impossible to
forge.
"RW" (Read and Write) such tags contain an
identifier and a memory unit to read / write data. The data therein may be
overwritten by a large number of times.execution:adhesive paper or mylar tags;
Standard plastic cards; Disk labels; Different kinds of trinkets; Special
version for harsh environments.the moment there is a huge variety of labels, so
you can pick the right performance for every task, depending on the needs of
the customer.
1.2 The
overall architecture of RFID-systems
RFID system mainly consists of two parts: the Reader and the
RFID Tag, between them through radio frequency way to communication. Each tag
has a unique electronic code, be attached to each object to identify the
different objects, and some labels can also store related objects of simple
information. Reader will launch to label read signals, and receive tag Morris
information, then carries on the preliminary treatment of information and send
back backend systems. A typical RFID system structure is shown in Figure 1.

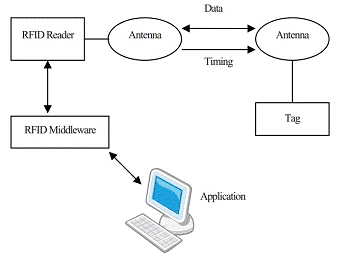

Fig. 1. RFID system structure
working principle of RFID is: the reader sends out radio
waves of specific frequency energy to the electronic tags, electronic tag
receives the radio waves. If is a passive tag, the induced current obtained
with the energy stored in the chip information sent to the reader, if is an
active tags, the active information in the chip of a particular frequency of
the signal sent to the reader. Reader receives the feedback signal sent to the
information system for processing.with other identification technology, RFID
identification system have more advantages, such as no-contact, high degree of
automation, durable and reliable, recognition speed, adapt the working
environment, enabling both high speed and multi-tag identification and so on.
Meanwhile, it does not need artificial view that manufactures barcode which
saves Labour costs, and solved the two difficult problems in retail: out of
stock and loss of goods (due to theft and supply chain to be disturbed for the
loss of product) (Z. Mingxiu, 2012, p. 3).
1.3 Reader
Mandatory element of the RFID system is the reader that
provides access to information stored on the transponder. The reader generates
an electromagnetic field that activates the transponder. It, in turn, transmits
the coded information reader. Depending on the bandwidth and the type of
transponder data can be read at distances from a few centimeters to several
meters. Are stationary and mobile.
1.4 RFID
standards
Standard ISO 15693 (13.56 MHz) standard ISO 18000 (860 MHz)
common technology, characterized by difficulties counterfeit labels. Best
examples of tags can operate at a distance of 1 meter. The most promising
technology, wherein increased reading speed, as well as a range of from 1 to 7
meters without line of sight.
1.5 RFID
Security Threats
security threats to RFID technology can be put into several
classes; Sniffing (or Eavesdropping), Spoofing, Cloning, Replay, Relay, and
Denial of service attacks. The highest levels of security risks to an RFID
network are sniffing and eavesdropping attacks. Eavesdropping/sniffing is an
unauthorized access to tags. A rogue reader can read a tag and record
information that may be sensitive and confidential. Spoofing attacks involve
secretly scanning as well. It is not only recording a data transmission from a
legitimate tag but also copying the original tag’s ID and making itself appear
to be valid. Replay attack involves using a tag’s response to a rogue reader’s
challenge to impersonate the tag. Relay attacks are alike to the replay attack
but it delays the valid tag to response to the authentic reader. The last type
of threat is the denial of service attack. It is against the accessibility of
the RFID system and can hit any portion of the system (tag, reader, and
controller-backend computers), such as removing the RFID tag from merchandise
before it is checked out of the store, and swapping and placing tags on
merchandise that has a lower cost. All attacks affect database integrity on the
backend systems because of the inventory mismatches. (L. Burton, 2013, p. 3)
2. Software
component integration with the accounting system of the
developers involved in decisions (Solution Providers), such as Taxonomy.
Professionally built system does not require retraining of personnel, not force
transfer / convert data without disrupting the normal rhythm of the enterprise.
All the advantages of contactless identification technology will be available
in a familiar programming environment. radio
frequency identification tagcompany has already implemented RFID integration with the
most popular accounting programs and business management, such as Microsoft
Navision / Axapta, belonging to the family 1C (1C-Addressable warehouse,
warehouse-VIP 1C, 1C-Enterprise), library information systems IRBIS, Ruslan,
Mark SQL.
3. Application
libraries have implemented RFID systems in their book
exchange. Scope of RFID-technology is virtually unlimited.of borrowing and
returning back of the books are done simply by using RFID tags. Thus using the
automation, information about library usage could be kept under record (S.
Akpinar, 2010, p. 5)product values in cultural institutions
(museums, visitors can using a personal digital assistant PDA (Personal Digital
Assistant) to request information about the exhibits, which exhibits supplied
transponders RFID. This museum staff receive information about what exhibits
are often particularly interested in) . Visitors to the store, leaving the
trading floor with a basket of purchases will receive an invoice after crossing
zone scanning device that reads information from all smart labels objects lying
in the basket. Hospitals in the U.S. and in Germany also use radio frequency
identification to facilitate the identification of patients and optimize their
placement in the wards. Patients are provided with handmade bracelet with
integrated transponders in them, which are coded patient name and number of his
medical history, stored in an electronic database.Canada, from September this
year, farmers were branding cattle by placing transponders on the animal's ear.
Thus, when a sudden outbreak or epidemic herd becomes possible to quickly
isolate.Russia in recent years has been a steady interest in radio frequency
technology. Suppliers are increasingly getting requests from companies on the cost
of implementation, as applicable to the project requirements are becoming more
reasonable and specific. According to experts, the peak demand for RFID, still
ahead. RFID-tags is forecast promises to be the most popular and media
technology in the world, capable of competing on the spread of mobile
phones.prospects and directions of development. In the area of food
products technology can improve safety in food consumption because of low
quality products can be returned to the manufacturer. Tags control the amount
of autopsies packaging. Tags control the amount of temperature differences and
their significance. RFID labels will appear on the "roll" band,
showing information about the product or the user himself can control the speed
of scrolling of the text using slider Sound RFID-labels.
Conclusion
is a non-contact automatic identification technology, it is
through radio frequency signal automatically identify target signal and access
to relevant information, and the backup support for the information processing
software and applications of the technology. Meanwhile, RFID is future
information storage extraction and processing of mainstream technology, more
and more international companies have joined this technology development
research, In recent years have shown that large-scale development of the
situation, RFID concern by the market extent as any kind of emerging
technologies. In e-commerce logistics relying on the tripartite, RFID is the
key technology in informationization, the logistic informationization is
logistics automation premise, logistics automation can enlarge the logistics
operation capacity, and improve labour productivity to reduce logistics
operations mistakes. RFID in logistics automation can be seen in the three
prospects are extremely optimistic.
References
1. S. Akpinar, H. Kaptan. [2010]. Computer aided
school administration system using RFID technology. ELSEVIER journal.
<http://ac.els-cdn.com/S1877042810007391/1-s2.0-S1877042810007391
main.pdf?_tid=b7a42b20-f2cb-11e3-80f2-00000aab0f01&acdnat=1402644432_d8a97130ed8068a041c1916698469d25>.
Accessed October 6, 2014.
. C. Sun . [2012]. Application of RFID
Technology for Logistics on Internet of Things
http://ac.els-cdn.com/S2212671612000200/1-s2.0-S2212671612000200-main.pdf?_tid=d514efe6-f2cb-11e3-bbed-00000aab0f27&acdnat=1402644481_7784cb1f7d0cc55bd199091132f41770.
Accessed October 6, 2014.
. http://ac.els-cdn.com/S187538921200764X/1-s2.0-S187538921200764X-main.pdf?_tid=f2918d9a-f2cb-11e3-be66-00000aacb362&acdnat=1402644531_f747cdaa464b775d2da05bfac20cf599.
Accessed October 6, 2014.
. http://ac.els-cdn.com/S2212671613000437/1-s2.0-S2212671613000437-main.pdf?_tid=206f8d34-f2cc-11e3-8d69-00000aab0f6b&acdnat=1402644608_6e10dd7e57fbd1d54a81a83045556435.
Accessed October 6, 2014.
. http://ac.els-cdn.com/S1026309812000727/1-s2.0-S1026309812000727-main.pdf?_tid=c1c96a24-f2cc-11e3-bc3c-00000aab0f27&acdnat=1402644879_5e2faf1449f599e8e63671ca1bcca6e4.
Accessed October 6, 2014.
